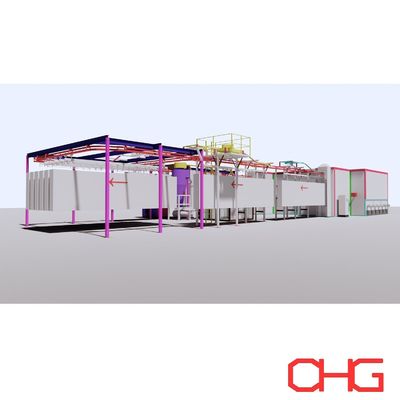

Automated Powder Coating System for Varied Metal Components
This automated coating system processes metallic workpieces across a broad spectrum of sizes and geometries. The application enclosure utilizes polypropylene construction, delivering exceptional resistance to chemical degradation. The coating process integrates robotic spray application with manual refinement stations, achieving both accuracy and adaptability. Material transport employs an overhead Power & Free conveyor mechanism, while loading and unloading operations maintain manual flexibility for diverse component configurations.
Tailored Engineering Services
Our coating systems are exclusively engineered to align with individual client specifications and production environments. To generate precise project costing, we require comprehensive technical parameters regarding your intended operation. We encourage you to share detailed system requirements through direct consultation, enabling our team to develop perfectly suited solutions.
Selecting our bespoke engineering service ensures a coating system that maximizes operational efficiency, delivers superior surface finishes, and addresses your distinctive production challenges. Contact our technical team to receive your personalized system proposal.
The Process of Powder Coating Line:
| 1. Surface Preparation: | The first step in the powder coating line is the surface preparation of the aluminum profiles. This stage is essential to ensure proper adhesion of the powder coating. Surface preparation may include cleaning, degreasing, and removing any contaminants from the aluminum surfaces. |
| 2. Pre-Treatment: | Following surface preparation, the aluminum profiles undergo a pre-treatment process to enhance both coating adhesion and corrosion resistance. Common methods include chemical cleaning, phosphating, or chromate conversion coating, all of which prepare the aluminum surface for optimal powder adhesion and improved coating performance. |
| 3. Drying: | Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish. |
| 4. Powder Coating Application: | With the profiles thoroughly dried, they are ready for powder coating application. The electrostatically charged powder is sprayed onto the aluminum profiles using specialized guns. The positively charged powder particles are attracted to the grounded metal surfaces, ensuring an even and uniform coating. |
| 5. Powder Curing: | After powder coating application, the aluminum profiles are transferred to curing ovens. In the curing ovens, the powder coating undergoes a thermal curing process. The oven's heat causes the powder particles to melt and flow, creating a continuous, smooth coating film. The curing process also chemically cross-links the powder particles, ensuring a durable and hardened finish. |
| 6. Cooling: | Following the curing process, the coated profiles enter a cooling phase. This stabilizes the coating and ensures it retains its properties and appearance over time. |
| 7. Quality Inspection: | After cooling, the coated aluminum profiles undergo a thorough quality inspection. The inspection involves checking the coating thickness, appearance, adhesion, and overall quality to ensure it meets the specified standards. |
