| الاسم التجاري: | CHG |
| رقم الطراز: | AC-04 |
| الـ MOQ: | 1 مجموعة |
| السعر: | 100,000-300,000 USD |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على التوريد: | 10 مجموعات في السنة |

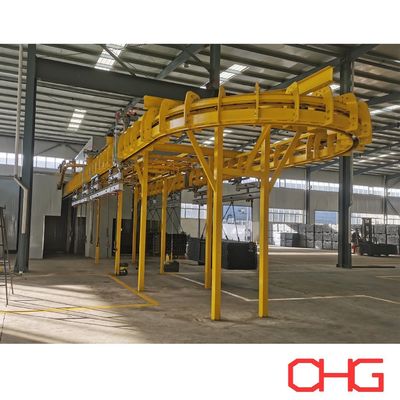

This production line is designed for coating carbon steel structural components, utilizing manual or inclined dipping methods for the coating application of pre-packaged frames. The system features a power-and-free overhead conveyor, with forklift-assisted manual loading and unloading for efficient material handling.
Production Process Flow:

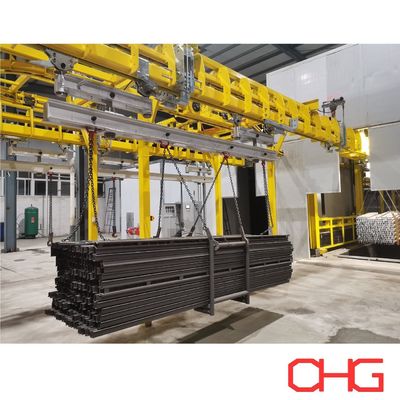

Forklift-Assisted Loading – Workpieces are manually loaded onto the conveyor with forklift support.
Dipping & Painting (6 min) – The frames are fully immersed in the coating solution to achieve uniform paint coverage.
Drip-Off Stage (90 min) – Excess paint naturally drains off the coated surfaces to ensure an even film.

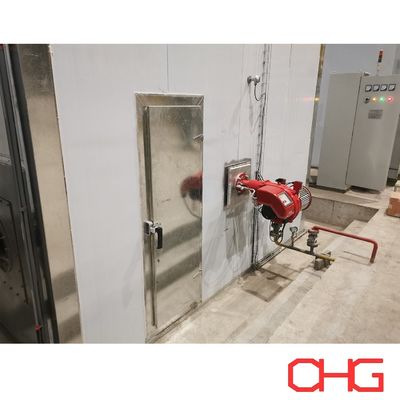

Drying Process (48 min at 60–80°C) – The coated parts are transferred into a controlled drying oven to cure the paint.
Natural Cooling (6 min) – The workpieces are allowed to cool down to stabilize the coating.
Forklift-Assisted Unloading – Finished products are manually removed from the line with forklift assistance.
Key Advantages:
| Superior Coating Performance | Our dipping line ensures complete and even film coverage, providing exceptional corrosion resistance and long-term protection against harsh environmental conditions — extending the lifespan of your carbon steel structures. |
| Increased Production Efficiency | Equipped with an accumulation conveyor and automated handling features, the system supports continuous operation with minimal downtime, significantly boosting productivity and process stability. |
| Enhanced Cost-Effectiveness | The precise dipping mechanism, combined with energy-saving drying and curing ovens, maximizes coating utilization, minimizes paint waste, and lowers overall energy consumption. |
| Exceptional Finish Quality | Through advanced process control and strict quality inspection, the system consistently produces smooth, uniform coatings that enhance both the appearance and performance of your finished products. |
Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.
